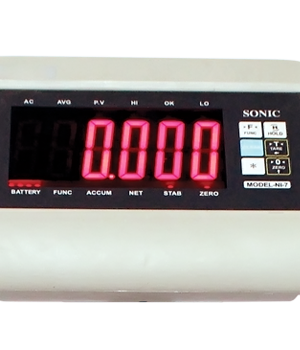

Sonic NI-7

SPECIFICATIONS : SONIC NI-7 INDICATORS
Analog Input signal range -19mV ~ 19mV
Conversion speed More than 10 times/s
Nonlinearity 0.0015%
Gain drift 0.03%
Bridge voltage DC 5V
Sensor connection 1-4 350Ω sensors
Indication Indication range -99999 ~ 999999 (decimal point is not considered)
Scale interval 1/2/5/10/20/50 optional
Serial communication interface Signal RS232 signal
Transmission distance ≤20m
Operating environment Power supply AC220V; 50, 60Hz (-2% ~ +2%)
Operating temperature -10°C ~ 40°C
Storage and transport temperature -25 °C ~ 55 °C
Relative humidity ≤85% RH
Fuse 500mA
Weight Approx. 2 kg
